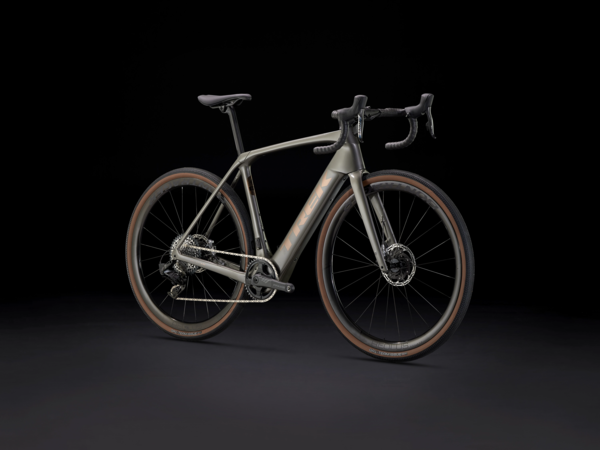

Trek Domane+ SLR 9 eTap

Trek Domane+ SLR 9 eTap
  • Color: Deep Smoke
  • Color: Carbon Red Smoke
  • Color: Crystal White
  • Color: Juniper
  • Color: Mercury
$12,999.99
Color:
Size: Select size
Please select options Unavailable
Sorry, this item is currently not available.

Details

Domane+ SLR 9 is a category-redefining, high-speed assist carbon e-road bike that doesn't look, fit, or feel like a standard e-bike. It's built on an 800 Series OCLV Carbon frame that hides a compact and refined motor to elevate your ride with natural-feeling assist. The motor quietly blends in with the elements, all but disappearing under you on peaceful solo spins and club rides, so you stay more connected to the experience while enjoying extra power for crushing climbs and long, epic adventures. Adding the cherry on top, it's equipped with the industry's most premium parts, like SRAM's best wireless electronic drivetrain-RED eTap AXS.

- The TQ harmonic pin ring motor is impressively discreet, compact, light, whisper-quiet, and offers a powerful assist up 28mph
- The smart charge port, sleek integrated display, and discreet controls keep the bike looking and feeling like a traditional road bike
- Stable endurance geometry partners with road-smoothing rear IsoSpeed that absorbs bumps in the road for a smoother, more comfortable ride
- On long rides, you can add on a Range Extender that fits neatly in the bottle cage and gives you the power you need to go the extra distance
- It comes equipped with SRAM's top-tier adventure-ready 1x wireless RED eTap AXS drivetrain and 40mm gravel tires for loose conditions

Geo Chart

Geometry Chart:
Size50525456586062
BB Drop (cm) 8 8 8 7.8 7.8 7.5 7.5
Chainstay Length (cm) 43 43 43 43 43 43 43
Eff. Top Tube (cm) 51.9 53 54.2 55.4 56.7 57.9 59.3
Frame Reach (cm) 36.8 37.1 37.4 37.7 38 38.3 38.6
Frame Stack (cm) 54.6 56.1 57.5 59.1 61.1 63.2 65.6
Head Angle 71.1° 71.3° 71.3° 71.9° 72.0° 72.1° 72.1°
Head Tube Length (cm) 13 14.5 16 17.5 19.5 22 24.5
Offset (cm) 5.3 5.3 5.3 4.8 4.8 4.8 4.8
Seat Tube (cm) 45 47.5 50 52.5 54.8 56.7 58.6
Seat Tube Angle 74.6° 74.2° 73.7° 73.3° 73.0° 72.8° 72.5°
Standover (cm) 72.8 74.7 76.6 78.8 80.8 82.9 84.7
Trail (cm) 6.3 6.2 6.2 6.3 6.3 6.2 6.2
Wheelbase (cm) 100.7 101.3 102.1 101.8 102.7 103.7 104.7
Sizes:
SizeHeight (inches)Height (cm)
50 5'2" - 5'4" 158 - 163cm
52 5'4" - 5'6" 163 - 168cm
54 5'6" - 5'9" 168 - 174cm
56 5'9" - 5'11" 174 - 180cm
58 5'11" - 6'1" 180 - 185cm
60 6'1" - 6'3" 185 - 190cm
62 6'3" - 6'5" 190 - 195cm

Specs

Frame 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle
Fork Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Wheels Front: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Rear: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Crankset Praxis Carbon
Shifters SRAM RED eTap AXS, 12 speed
Rear Derailleur SRAM RED XPLR eTap AXS, 44T max cog
Cassette/Freewheel SRAM XG-1271, 10-44, 12 speed
Chain SRAM RED D1, 12 speed
Rotors SRAM CenterLine X, centerlock, round edge, 160mm
Handlebars Bontrager Pro IsoCore VR-SF
Tape/Grips Bontrager Supertack Perf tape
Stem Bontrager RCS Pro, -7 degree
Seatpost Domane carbon seatpost, KVF2 shaping, 20mm offset
Saddle Bontrager P3 Pro, short nose
Pedals Sold Separately
Motor TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Battery TQ 360Wh
Controller/Display TQ LED display with Bluetooth & ANT+ connectivity
Charger TQ 4A charger

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Deep Smoke / 50cm 768682567289 5274777 DOM31399770E
Deep Smoke / 52cm 768682567388 5274778 DOM31217486E
Deep Smoke / 54cm 768682567227 5274779 DOM31569011E
Deep Smoke / 56cm 768682567180 5274780 DOM31899145E
Deep Smoke / 58cm 768682586969 5274781 DOM31200826E
Deep Smoke / 60cm 768682586945 5274782 DOM31641919E
Deep Smoke / 62cm 768682587041 5274783 DOM31701329E
Carbon Red Smoke / 50cm 768682587164 5274793 DOM31520859E
Carbon Red Smoke / 52cm 768682587089 5274794 DOM31868551E
Carbon Red Smoke / 54cm 768682587065 5274795 DOM31518042E
Carbon Red Smoke / 56cm 768682587003 5274796 DOM3173128E
Carbon Red Smoke / 60cm 768682586983 5274798 DOM31328373E
Carbon Red Smoke / 62cm 768682606162 5274799 DOM31532278E
Crystal White / 50cm 768682587188 5274785 DOM29917960E
Crystal White / 52cm 768682586907 5274786 DOM29897756E
Crystal White / 54cm 768682587140 5274787 DOM29701365E
Crystal White / 56cm 768682587102 5274788 DOM29604015E
Crystal White / 58cm 768682586921 5274789 DOM29554846E
Crystal White / 60cm 768682587126 5274790 DOM29298917E
Crystal White / 62cm 768682587201 5274791 DOM2970487E
Juniper / 50cm 768682605929 5285665 DOM24170313R
Juniper / 52cm 768682606063 5285666 DOM24653105R
Juniper / 54cm 768682606247 5285667 DOM24520621R
Juniper / 56cm 768682606100 5285668 DOM24121277R
Juniper / 58cm 768682606285 5285669 DOM2463427R
Juniper / 60cm 768682605967 5285670 DOM24833418R
Juniper / 62cm 768682606049 5285671 DOM24132066R
Mercury / 50cm 768682606124 5274801 DOM24431465Y
Mercury / 52cm 768682606001 5274802 DOM24169671Y
Mercury / 54cm 768682606025 5274803 DOM24835958Y
Mercury / 56cm 768682606148 5274804 DOM24703951Y
Mercury / 58cm 768682605868 5274805 DOM24273589Y
Mercury / 60cm 768682606209 5274806 DOM24755498Y
Mercury / 62cm 768682606223 5274807 DOM24326131Y
